Lödige ESCORTA: Compact Lift for Goods and Persons

Warburg - The compact goods lift Lödige ESCORTA is a real all-rounder. It can be easily integrated into existing buildings or rack systems, needs no separate machine room or shaft and transports heavy, unwieldy goods along with persons. Thanks to its new certification (European Machinery Directive 2006/42/EG und DIN EN 81-41), multiple persons can now simply ride in the lift with their goods to the desired floor.

Variable and safe

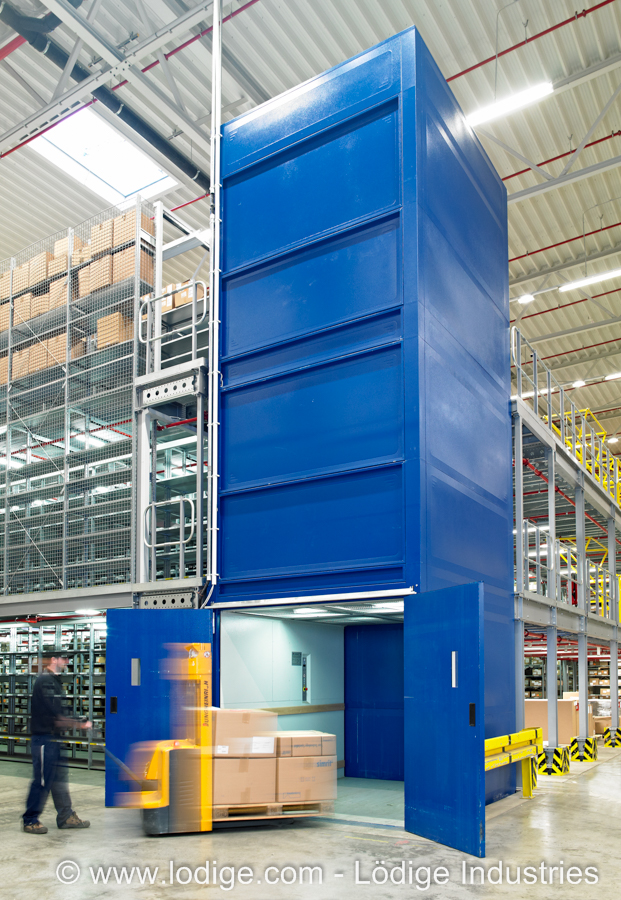

ESCORTA goods lift is the ideal solution for easy vertical transport in multi-level storage and production facilities. In its standard configuration, the lift has a load capacity of up to 3,000 kilograms and a lifting height up to 18 meters (with two to six stopping points). Cabin dimensions can vary greatly, with length, width and height each reaching nearly three meters. This lift solution offers superior safety due to its double brake system.

Individual and fast
The Lödige approach enables various executions to accommodate special requirements and structural conditions. The lifts are tailor-made and meet the most individual of customer needs. From fire-resistant doors and ram protection in the cabin to external key switches and color - the ESCORTA lift can be individually configured in great detail.

The self-supporting steel shaft with sheet metal cladding is turnkey delivered and can be integrated into existing buildings or rack systems quickly without extensive alterations. Installation requires no special civil or building works, no separate machine room or shaft. At 70 millimeters, the required pit depth is very small and can be altogether avoided by choosing the ramp option. After installation, Lödige offers full service for maintenance of the equipment.

The ESCORTA lift is an example of individual, innovative and turnkey lift solutions of the highest quality that Lödige Industries has been offering for over 60 years. Thanks to their flexibility, the systems can be installed in many different types of buildings to facilitate the movement of goods and optimize logistics processes.

About Lödige Industries Group
Headquartered in the German town of Warburg in North Rhine-Westphalia, the Lödige Industries Group was founded in 1948 and now has an international presence with sites in Asia, the Middle East, the United States and all over Europe. A family-run enterprise, Lödige Industries employs more than 1,000 people worldwide. Lödige Industries supplies materials handling solutions for a broad range of industries and specializes in providing complex material flow systems for logistics tasks.

Visit our product pages and read more about the compact goods lift Lödige ESCORTA

Use our planning too and configure your ESCORTA Goods Lift online!

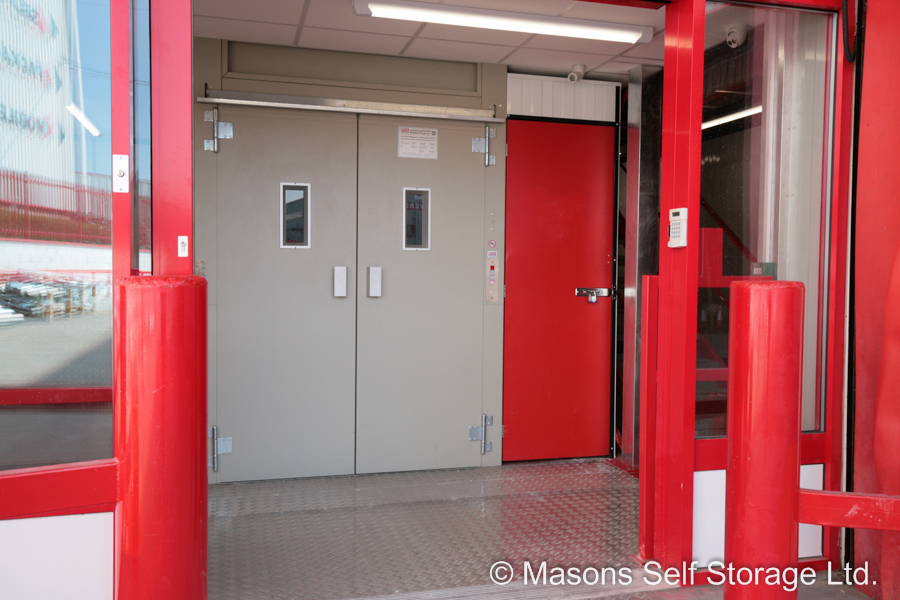

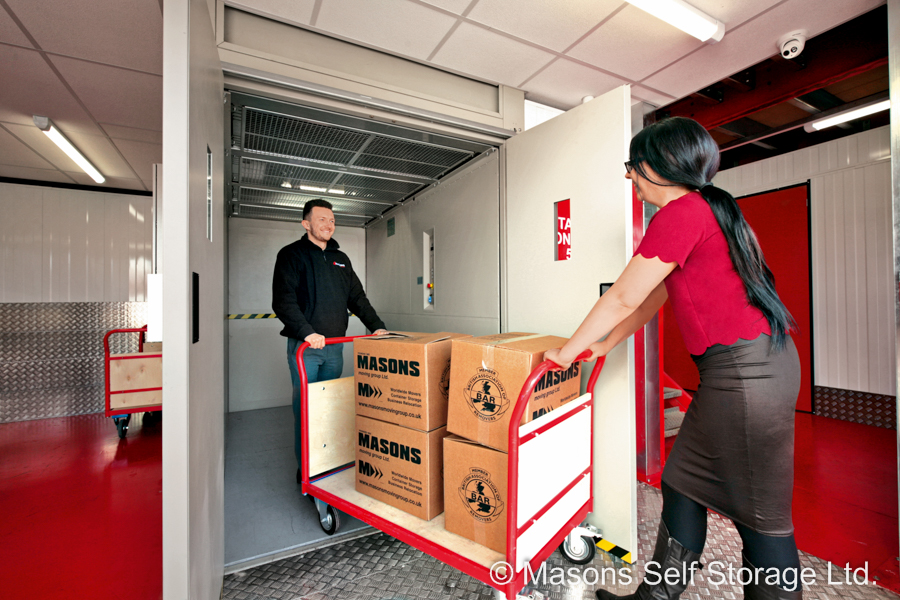

Take "Masons Self Storage": Lödige ESCORTA® turned moving goods in the self-storage facility in South Wales, England, into a compelling selling point. CEO Gordon Mason says: "The new lift was installed without a hitch and is a huge boost for our business. As they no longer have to carry their goods up and down the stairs, more and more customers are coming to us."
