Empty ULD Storage

Cost-effective vertical hoisting system for empty ULD storage

The Lödige Empty ULD Storage offers a simple and space-saving solution for empty ULDs storage inside the terminal. Designed as a primarily manual or semi-automated system, it provides safe and efficient handling by combining vertical movement with easy manual transfer using Castor Decks, Roller Decks or ULD Support Pallets in combination with a Cargo Pallet Mover.

Efficient Handling for Empty ULDs

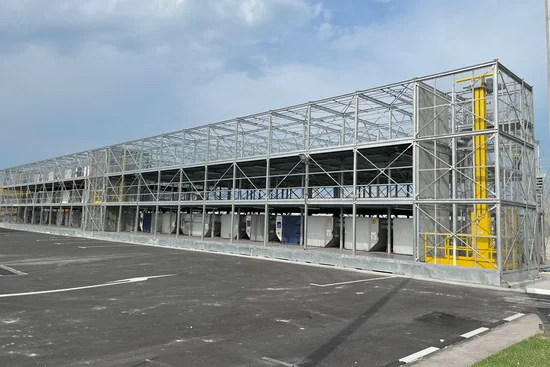

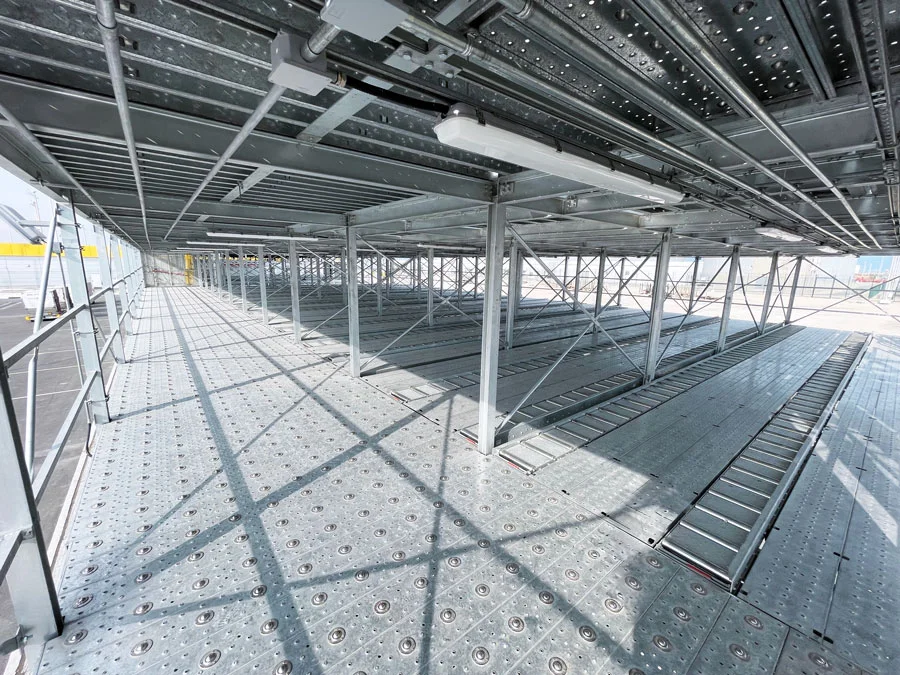

The Empty ULD Storage Hoist connects different levels of manual storage racks for ULDs, providing safe and space-efficient vertical transfer. Installed in a steel or concrete shaft, it uses an electrically driven cable hoisting system with smooth acceleration and deceleration. A non-powered roller deck at 508 mm system height enables easy manual transfer of ULDs, supported by flared side guides for precise alignment. Optional safety doors at each access level further enhance secure operation

Benefits of Lödige’s Empty ULD storage solutions

Focused on space utilisation and handling efficiency, our storage solutions deliver measurable benefits by optimising capacity, ensuring safe ULD handling and enabling seamless integration with terminal workflows.

Efficient vertical access to multi-level storage

Small footprint for optimal space use

Compatible with ULD Support Pallets and Cargo Pallet Movers

Durable design with low maintenance requirements

Easy manual ULD transfer on standard 508 mm system height

Safe operation with smooth lifting and optional interlocked safety doors

Ideal for retrofitting into existing terminals

Cost-effective storage extension for empty ULDs

Key Components

Steel Shaft Structure: Self-supporting frame with integrated guide rails; optionally concrete shaft
Lifting Frame: Carries ULD on a non-powered roller deck
Hoist System: Electrically driven cable lift system with counterweight
Counterweight Assembly: Balances load for energy-efficient and stable operation
Non-Powered Roller Deck: For manual transfer of ULDs at 508 mm height with side guides
Sensors & Controls: For position detection, overload protection and safe movement

From Landside to Airside – Explore the Processes

Navigate through the key steps of air cargo handling and explore how our solutions support each process.

Landside Interface

Consignment Storage

Build & Break

Intra Terminal Transport

ULD Storage

Airside Interface

5 / 6

Service & Remote Support

for Air Cargo Terminals

Keep your terminal fully operational. With tailored service models, remote diagnostics, and fast spare parts supply, we ensure maximum availability and minimise downtime. From preventive maintenance to full-service contracts – our experts support you worldwide, 24/7.

Explore Service Options

Plan your next step in ULD storage.

Talk to our experts to find the right solution – from manual setups to fully automated systems.

FAQs

No. The system is designed for indoor use in air cargo terminals.

The standard roller deck operates at 508 mm transfer height.

Yes, the hoist platform is compatible with ULD Support Pallets, ensuring safe and guided transfer.

No pit is needed. The hoist operates within a steel or concrete shaft structure, standing directly on the floor.

Yes. Acceleration and deceleration are smooth and jerk-free. The system includes rubber buffers and emergency stop functions.

The system is designed specifically for empty 5 ft ULDs.

The hoist includes guide rails, position sensors, overload protection, and optional interlocked safety doors.

Yes. Its compact, modular design makes it suitable for upgrades or retrofits.

Very low maintenance – bearings are sealed and the structure is designed for long-term durability.
