Passenger lift ELEGANCA
Modern and stylish passenger lifts for new and existing buildings
The passenger lift ELEGANCA is a smart solution for passenger transport, which can be easily installed in all types of buildings. Thanks to the variety of available models it can successfully meet requirements of new and existing buildings.
This user-friendly, spacious, energy-efficient and simple to plan passenger lift guarantees high comfort of ride and is with many configurations of features available. Thanks to the broad range of available designs, it contributes to the unique design of buildings. As a retrofit installation, the ELEGANCA lift increases the value of properties, improves accessibility and thus also the quality of your life.
For every step of your project - from initial planning, through development and construction to final installation and after-sales service, we are your trusted partner.
Advantages
- Compact design & short installation time
- Low energy consumption
- Robust and reliable
- High driving comfort
- Low-noise (compliant with VDI 2566-2)
- Reduced design space for existing shafts
Possible applications of ELEGANCA:
Single-family detached home
Apartment houses
Office buildings
Hotels
Event and Shopping Centres
Single-family detached home
Passenger lifts can enable and simplify the horizontal transportation of people in your home.
With our ELEGANCA passenger lift, you not only have a flexible lift solution for your home, but also the right choice for a modern and stylish home. Because the lift has automatically opening sliding doors and fancy designs are possible.
Apartment houses
Passenger lifts can be used in apartment houses to ensure barrier-free access to all floors. On the other hand, it is possible to enable residents and any accessories (bicycles, prams or luggage) to be transported quickly and comfortably to their respective floors.
The ELEGANCA passenger lift is designed for continuous throughput. All floors can be reached and served comfortably with the lift. Due to the conveying speed of 1.0 m/s, no one has to wait long for the lift.
Office buildings
With passenger lifts you create access for all floors in your office building.
With the ELEGANCA passenger lift you achieve barrier-free access to your workplace on all floors. The ELEGANCA is suitable for high frequency of use.
Hotels
A passenger lift is essential for hotels. Besides stairs, a lift is the barrier-free option for reaching all levels of your hotel.
Our ELEGANCA passenger lift is particularly suitable for a high passenger load and enables you to offer your guests a high level of travel comfort. Due to its wide range of models, the lift can be adapted to your building design.
Event and Shopping Centres
With the help of a passenger lift, you can make it easy and comfortable to reach all levels of an event and shopping centre.
With its maximum load capacity of 1,000 kg, the ELEGANCA passenger lift can transport up to 13 people at a time. It also has automatically closing sliding doors and offers a wide variety of models from which you can select a lift to match the building design.
Timeless cabin designs
The stylish designs of the ELEGANCA are timeless and functional. The doors and door frames are finished in stainless steel as standard. For the cabin walls, you can choose between stainless steel ("Classic") and lacquered surfaces ("Urban" and "Timber"). Other designs are available on request. The ELEGANCA can also be designed with opposing doors (through-loading). Talk to us, we will be happy to advise you.

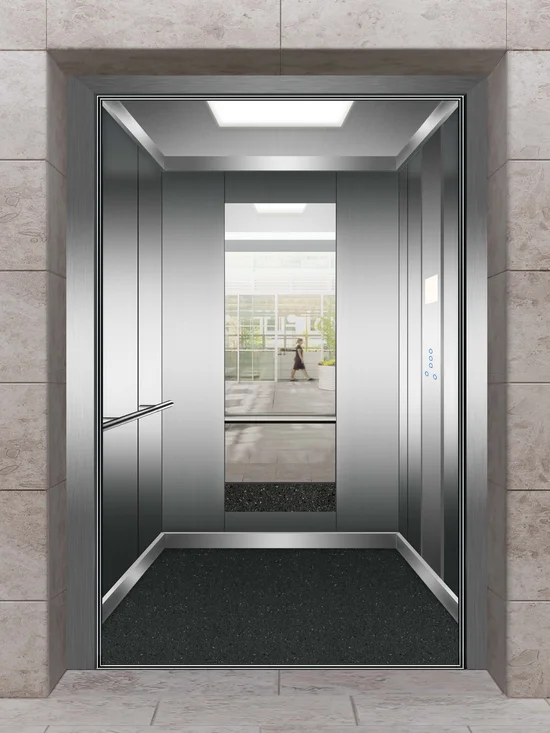

"Classic"
| Surface | Stainless Steel Brushed K220D | |
| Floor | Vinyl Nature Black | |
| Cabin ceiling | LED panel | |
| Handrail |
of satin silver stainless steel (on the side wall opposite the control panel) | |
| Mirror |
Silver tempered glass to EN 81-70 (on rear wall) | |
| Skirting | Silver anodised aluminium |

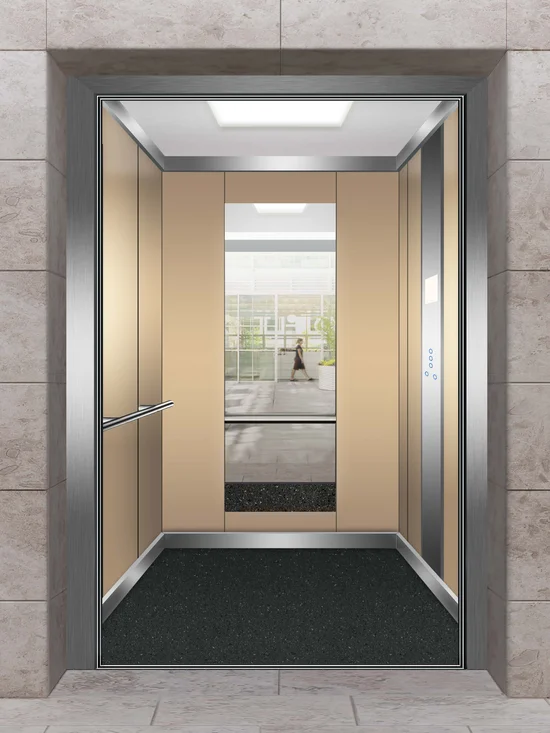

"Timber"
| Surface | Skinplate Beige | |
| Floor | Vinyl Nature Black | |
| Cabin ceiling | LED panel | |
| Handrail |
Satin silver stainless steel (on the side wall opposite the control panel) | |
| Mirror |
Silver tempered glass to EN81-70 (on rear wall) | |
| Skirting | Silver anodised aluminium |

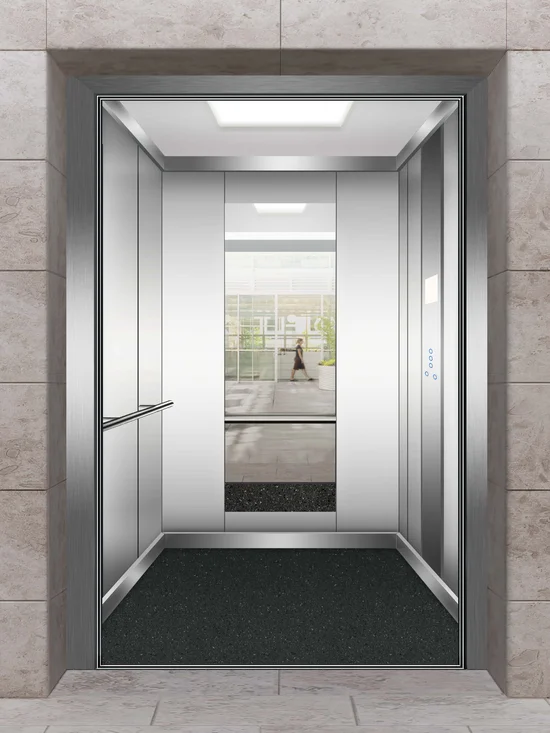

"Urban"
| Surface | Skinplate White | |
| Floor | Vinyl Nature Black | |
| Cabin ceiling | LED panel | |
| Handrail |
Satin silver stainless steel (on the side wall opposite the control panel) | |
| Mirror |
Silver tempered glass to EN81-70 (on rear wall) | |
| Skirting | Silver anodised aluminium |
Technical Data ELEGANCA
| Cabin width | 1,100 mm | 1,100 mm | 1,100 mm | 1,100 mm |
| Cabin depth | 1,400 mm | 2,100 mm | 1,400 mm | 2,100 mm |
| Cabin height | 2,200 mm | 2,200 mm | 2,200 mm | 2,200 mm |
| Pit depth | 1,000 mm | 1,000 mm | ≥425 mm | ≥550 mm |
| Head room height | 3,400 mm | 3,400 mm | ≥2,655 mm | ≥2,655 mm |
| Shaft width | 1,600 mm | 1,600 mm | 1,600 mm | 1,600 mm |
| Shaft depth | 1,815 / 2,080 mm | 2,515/2,780 mm | 1,815/2,080 mm | 2,515/2,780 mm |
* ELEGANCA RB is a version with reduced installation space, for example for installation in existing shafts. For more information on the exact dimensions and possible applications, please contact our sales team.
Technical data for planning purposes only. Subject to change without notice.
